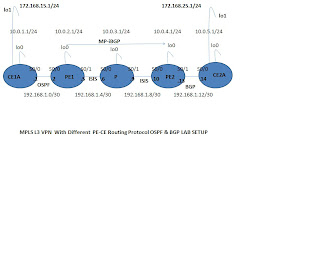

IGP Used "ISIS" Level 2 between PE1 & PE2. Loopbacks in Level 1 and
PE1 & PE2 in different area.
OSPF Routing Protocol used between CE1A & PE1 and BGP used between CE2A & PE2
VRF used CEA with rd "64513:1" & rt "64513:100"
********************************************************************
CE2A#sh running-config
!
interface Loopback0
description <
ip address 10.0.5.1 255.255.255.0
!
interface Loopback1
description <
ip address 172.168.25.1 255.255.255.0
!
interface Serial0/0
description <
ip address 192.168.1.14 255.255.255.252
!
!
router bgp 64514
bgp log-neighbor-changes
network 10.0.5.0 mask 255.255.255.0
network 172.168.25.0
neighbor 192.168.1.13 remote-as 64513
neighbor 192.168.1.13 local-as 64515
neighbor 192.168.1.13 description <
neighbor 192.168.1.13 soft-reconfiguration inbound
!
CE2A#
PE2#sh running-config
ip cef
!
ip vrf CEA
description <
rd 64513:1
route-target export 64513:100
route-target import 64513:100
!
mpls label protocol ldp
mpls ldp explicit-null for 10 to 20
no tag-switching ip propagate-ttl forwarded
tag-switching tdp router-id Loopback0
!
interface Loopback0
description <
ip address 10.0.4.1 255.255.255.0
ip router isis
isis circuit-type level-1
!
interface Serial0/0
description <
ip address 192.168.1.10 255.255.255.252
ip router isis
mpls label protocol ldp
tag-switching ip
clockrate 2000000
isis circuit-type level-2-only
!
interface Serial0/1
description <
ip vrf forwarding CEA
ip address 192.168.1.13 255.255.255.252
clockrate 2000000
!
router isis
net 49.0002.8888.2222.1111.00
!
router bgp 64513
bgp log-neighbor-changes
neighbor 10.0.2.1 remote-as 64513
neighbor 10.0.2.1 description <
neighbor 10.0.2.1 update-source Loopback0
!
address-family ipv4
neighbor 10.0.2.1 activate
neighbor 10.0.2.1 soft-reconfiguration inbound
no auto-summary
no synchronization
exit-address-family
!
address-family vpnv4
neighbor 10.0.2.1 activate
neighbor 10.0.2.1 send-community extended
exit-address-family
!
address-family ipv4 vrf CEA
redistribute connected
neighbor 192.168.1.14 remote-as 64515
neighbor 192.168.1.14 description <
neighbor 192.168.1.14 activate
neighbor 192.168.1.14 soft-reconfiguration inbound
no auto-summary
no synchronization
exit-address-family
!
access-list 10 permit 192.168.1.12 0.0.0.3
access-list 20 permit 10.0.3.0 0.0.0.255
access-list 20 permit 10.0.2.0 0.0.0.255
!
route-map Only_Customer permit 10
match interface Serial0/1
!
PE2#
P#sh running-config
ip cef
!
mpls label protocol ldp
no tag-switching ip propagate-ttl forwarded
tag-switching tdp router-id Loopback0
!
interface Loopback0
description <
>
ip address 10.0.3.1 255.255.255.0
ip router isis
isis circuit-type level-1
!
interface Serial0/0
description <
ip address 192.168.1.6 255.255.255.252
ip router isis
mpls label protocol ldp
tag-switching ip
clockrate 2000000
isis circuit-type level-2-only
!
interface Serial0/1
description <
ip address 192.168.1.9 255.255.255.252
ip router isis
mpls label protocol ldp
tag-switching ip
clockrate 2000000
isis circuit-type level-2-only
!
router isis
net 49.0002.9999.7777.6666.00
PE1#sh running-config
ip cef
!
ip vrf CEA
description <
rd 64513:1
route-target export 64513:100
route-target import 64513:100
!
mpls label protocol ldp
mpls ldp explicit-null for 10 to 20
no tag-switching ip propagate-ttl forwarded
tag-switching tdp router-id Loopback0
!
interface Loopback0
description <
ip address 10.0.2.1 255.255.255.255
ip router isis
isis circuit-type level-1
!
interface Serial0/0
description <<>>
ip vrf forwarding CEA
ip address 192.168.1.2 255.255.255.252
clockrate 2000000
!
interface Serial0/1
description <
ip address 192.168.1.5 255.255.255.252
ip router isis
mpls label protocol ldp
tag-switching ip
clockrate 2000000
isis circuit-type level-2-only
!
router ospf 10 vrf CEA
log-adjacency-changes
redistribute bgp 64513 subnets
network 192.168.1.0 0.0.0.3 area 0
!
router isis
net 49.0001.1111.2222.3333.00
!
router bgp 64513
no synchronization
neighbor 10.0.4.1 remote-as 64513
neighbor 10.0.4.1 description <
neighbor 10.0.4.1 update-source Loopback0
neighbor 10.0.4.1 soft-reconfiguration inbound
no auto-summary
!
address-family vpnv4
neighbor 10.0.4.1 activate
neighbor 10.0.4.1 send-community extended
exit-address-family
!
address-family ipv4 vrf CEA
redistribute connected
redistribute ospf 10 vrf CEA metric 2 match internal external 1 external 2
no auto-summary
no synchronization
exit-address-family
!
access-list 10 permit 192.168.1.0 0.0.0.3
access-list 20 permit 10.0.4.0 0.0.0.255
access-list 20 permit 10.0.3.0 0.0.0.255
!
route-map Only_Customer permit 10
match interface Serial0/0
PE1#
CE1A#sh running-config
!
interface Loopback0
description <
ip address 10.0.1.1 255.255.255.0
ip ospf network point-to-point
!
interface Loopback1
description <
ip address 172.168.15.1 255.255.255.0
ip ospf network point-to-point
!
interface Serial0/0
description <<>>
ip address 192.168.1.1 255.255.255.252
!
router ospf 10
network 10.0.1.0 0.0.0.255 area 0
network 64.65.66.0 0.0.0.255 area 1
network 192.168.1.0 0.0.0.3 area 0
network 172.168.15.0 0.0.0.3 area 1
!
CE1A#
OUTPUT VERIFICATION
CE1A#sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
C 172.168.15.0/24 is directly connected, Loopback1
O E2 172.168.25.0/24 [110/1] via 192.168.1.2, 00:03:29, Serial0/0
10.0.0.0/24 is subnetted, 2 subnets
C 10.0.1.0 is directly connected, Loopback0
O E2 10.0.5.0 [110/1] via 192.168.1.2, 00:03:29, Serial0/0
192.168.1.0/30 is subnetted, 2 subnets
O E2 192.168.1.12 [110/1] via 192.168.1.2, 00:10:37, Serial0/0
C 192.168.1.0 is directly connected, Serial0/0
CE1A#
CE2A#sh ip bgp
BGP table version is 7, local router ID is 210.211.212.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
*> 10.0.1.0/24 192.168.1.13 0 64515 64513 ?
*> 10.0.5.0/24 0.0.0.0 0 32768 i
*> 192.168.1.0/30 192.168.1.13 0 64515 64513 ?
*> 192.168.1.12/30 192.168.1.13 0 0 64515 64513 ?
*> 172.168.15.0 192.168.1.13 0 64515 64513 ?
*> 172.168.25.0 0.0.0.0 0 32768 i
CE2A#ping 10.0.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 92/160/236 ms
CE2A#sh ip rou
CE2A#sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
B 172.168.15.0/24 [20/0] via 192.168.1.13, 00:01:36
C 172.168.25.0/24 is directly connected, Loopback1
10.0.0.0/24 is subnetted, 2 subnets
B 10.0.1.0 [20/0] via 192.168.1.13, 00:01:36
C 10.0.5.0 is directly connected, Loopback0
192.168.1.0/30 is subnetted, 2 subnets
C 192.168.1.12 is directly connected, Serial0/0
B 192.168.1.0 [20/0] via 192.168.1.13, 00:01:36
CE2A#
CE1A#ping 210.211.212.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 210.211.212.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 56/113/176 ms
CE1A#
CE2A#ping 201.202.203.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 201.202.203.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 48/124/256 ms
CE2A#
PE2#sh ip bgp vpnv4 vrf CEA 210.211.212.1
BGP routing table entry for 64513:1:172.168.25.0/24, version 49
Paths: (2 available, best #1, table CEA)
Advertised to update-groups:
1
64515 64514
192.168.1.14 from 192.168.1.14 (210.211.212.1)
Origin IGP, metric 0, localpref 100, valid, external, best
Extended Community: RT:64513:100
64515 64514, (received-only)
192.168.1.14 from 192.168.1.14 (210.211.212.1)
Origin IGP, metric 0, localpref 100, valid, external
PE2#
